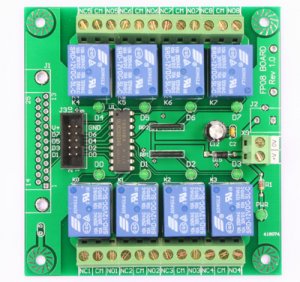

8 Channels Relay Board
Easy-to-Program with Visual BASIC, C or LabVIEW programs
Come with Sample Code of Demo Program
Assembled and Tested
Board Features:
* Double side PCB trace can carry 10A current between Relays and Terminals
* 8 x Relay outputs, contacts rated 10A@125VAC, 7A@240VAC/28VDC
* Indication LED’s for output and input status
* Screw Terminal Blocks for Relay outputs, input channels and 12V Power Input
* DB25 female connector for connect to the computer parallel printer port (Option $2.00 US each).
* 2 x 5 Ribbon Cable Header for connect to PIC, AVR, Intel 8051 device
* Power input 12VDC / 350mA.
* Dimensions: 3.75 x 4.00inches (95 x 100mm)
* 4 x Φ3mm mounting holes
Software (delivery by e-mail):
* Windows based program to test the relay board for parallel port assembled board.
* VB 2005 test program sample source code
* LabVIEW program to test and timing control the relay board. (Option $10. and send by email)
Shipping Included:
Qty. Description
1 x Assembled FP08I/O Relay Board Print Circuit Board
Optional Part:
Qty. Description________Price (each)
1 x DB25 Connector_____US $2.00
Shipping/Handling:
Please inquire us if you order more then 2 items or select other service then Lettermail (Canada)/Light Packet (USA).
Ship To_______S/H(US$)____Each Additional__Service
US-Mainland___$6.99_______$6.99__________Canada Post Light/Air Small Packets USA
US-Mainland___$19.99______$6.99__________Canada Post Expedited Parcel - USA
Alaska________$8.99_______$8.99__________Canada Post Light/Air Small Packets USA
Hawaii________$8.99_______$8.99__________Canada Post Light/Air Small Packets USA
Canada_______$3.99_______$3.99__________Canada Post Lettermail
Canada-ON____$15.99______$4.99__________Canada Post Xpresspost
International___$9.99_______$9.99__________Canada Post International Letter-post
